D-Link DVG-5008S Setup
1. To enter gateway's web interface enter the device's IP-address in the URL bar. PC should be connected to gateway's LAN port. Default IP address is 192.168.8.254
You can attain the device's IP address by dialing **#101
By default no login and password are set
Open "General Settings" tab "SIP" and enter the following data:
FXS Representative Number: Your sip number (XXXXXX)
Register: check this box
User ID / Account: Your sip number (XXXXXX)
Password: Your sip password
Confirm Password: Your sip password
Proxy Server IP / Domain: voip.syd.spintel.net.au
Proxy Server Realm: voip.syd.spintel.net.au
TTL (Registration interval): 300
SIP Domain: voip.syd.spintel.net.au
Use Domain to Register: check this box
2. To save changes click "Accept" and then open tab

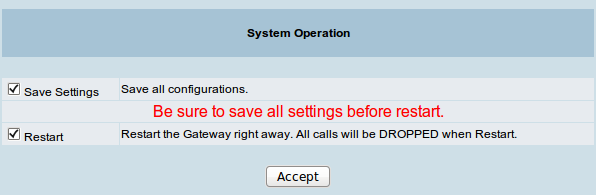

System Settings - System Operation check box near the following parameters
Save Settingsand Restart after that click "Accept"
